DN250給水管道波紋管補償器

服務內容：DN250給水管道波紋管補償器

簡介：DN250給水管道波紋管補償器 Bellows compensator for water supply pipe 上海淞江減震器集團有限公司官方網站為您介紹：DN250給水管道波紋管補償器信息，淞江集團為給水管道推薦一款經濟實用的波紋管補償器......

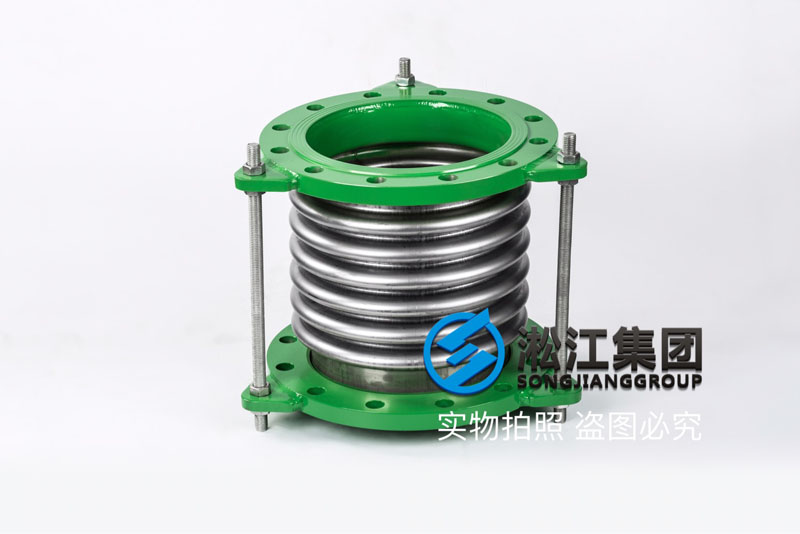

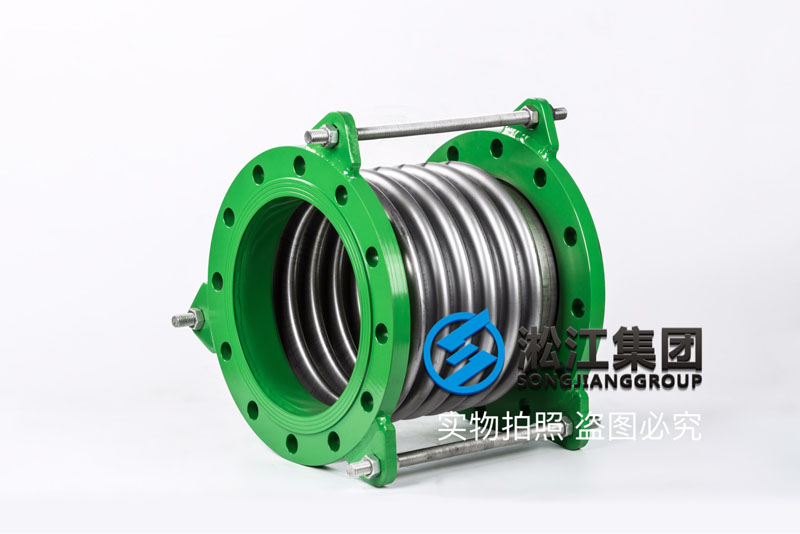

DN250給水管道波紋管補償器
Bellows compensator for water supply pipe

上海淞江減震器集團有限公司官方網站為您介紹：DN250給水管道波紋管補償器信息，淞江集團為給水管道推薦一款經濟實用的波紋管補償器產品，該產品具有良好的吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向位移，或補償管線、導管、容器等的軸向位移。
Shanghai Songjiang absorber group limited official website for your introduction: DN250 water supply pipeline bellows information, Songjiang group for water supply pipeline recommend an economical and practical bellows compensator product, the size change of the product has a good absorption pipeline, conduit, container by thermal expansion and contraction caused by other reasons, or compensation pipeline, catheter, vessels, axial, transverse and angular displacement.

名稱：給水管道波紋管補償器

口徑：DN250mm

壓力：PN16

波數：6波

厚度：1.2mm

長度：330mm

伸縮量：60mm

波紋材質：不銹鋼304

法蘭材質：碳鋼（鍛打）

適用于：管道管線中

作用：吸收管道熱脹冷縮的軸向位移

缺點：請在管道進水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；

取代者：橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。

品牌：淞江集團

制造商：上海淞江減震器集團有限公司

Name: water pipe bellows compensator

Caliber: DN250mm

Pressure: PN16

Wave number: 6 wave

Thickness: 1.2mm

Length: 330mm

Scalability: 60mm

Corrugated material: stainless steel 304

Flange material: carbon steel (forging)

Brand: Songjiang group

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

了解該產品參數信息請點擊：【樣冊P93】BGF型不銹鋼波紋補償器

DN250給水管道波紋管補償器中間波紋部分采用奧氏體不銹鋼材料或按用戶要求的材料制造，具有優良的柔軟性，耐蝕性，耐高溫性，耐高壓性，在管路中可補償軸向位移，用以溫度補償和吸收振動、降低噪聲、改變介質輸送方向、消除管道間或管道與設備間的軸向位移等，雙法蘭金屬波紋軟管對有軸向位移的管道補償尤為適用。
DN250給水管道波紋管補償器習慣上也叫膨脹節、伸縮節，不銹鋼波紋伸縮節屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形，以吸收管線、導管、容器等由熱脹冷縮等原因而產生的軸向變化，或補償管線、導管、容器等的軸向位移，也可用于降噪減振等。

DN250 water supply pipe bellows compensator using austenitic stainless steel material or according to user requirements for the manufacture of materials, with softness, excellent corrosion resistance, high temperature resistance, high pressure, in the pipeline can be connected to any direction, with temperature compensation and absorb vibration and reduce noise, changing the medium conveying direction, eliminate the mechanical displacement of the pipe or pipe and between devices, especially for the flexible joint with double flange corrugated metal hose on the displacement and vibration of pump and valve etc..

DN250 water supply pipe bellows compensator is customarily called expansion joint and expansion joint, and stainless steel corrugated expansion joint belongs to a kind of compensation element. The effective expansion and deformation of bellows can be used to absorb the size change of pipeline, conduit, container and so on, and compensate for axial, lateral and angular displacement of pipelines, conduits, containers, etc., which can also be used for noise reduction and vibration reduction.

材料說明：

波紋管體：為了更持久的使用壽命，全部采用不銹鋼304正材生產，支持各種光譜儀檢測，假*賠十，厚度全部厚于同行業標準。

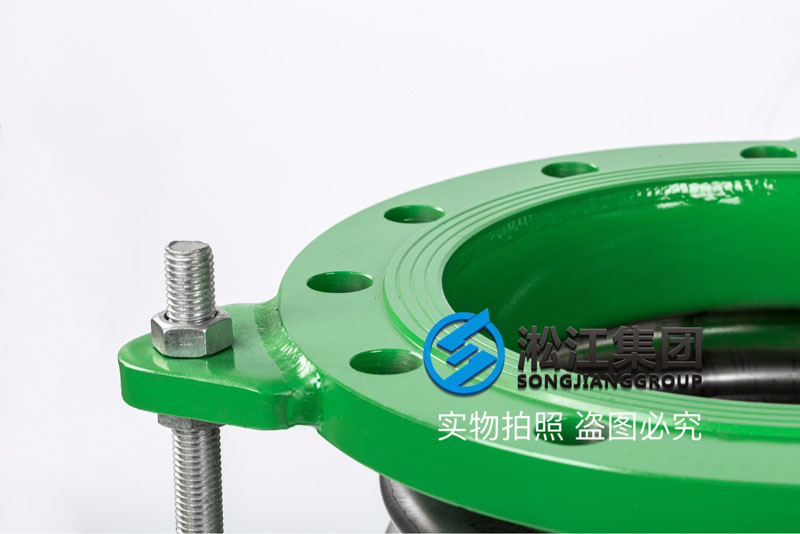

連接法蘭：法蘭全部采用山西正宗鍛打材質，無論是強度還是密封性都是很好的材質，不要拿市面上的鑄鋼、鋼板鋼法蘭來對比，沒有任何可比性。

焊材：焊材全部采高于母材等級標準，讓焊接點更加牢固。

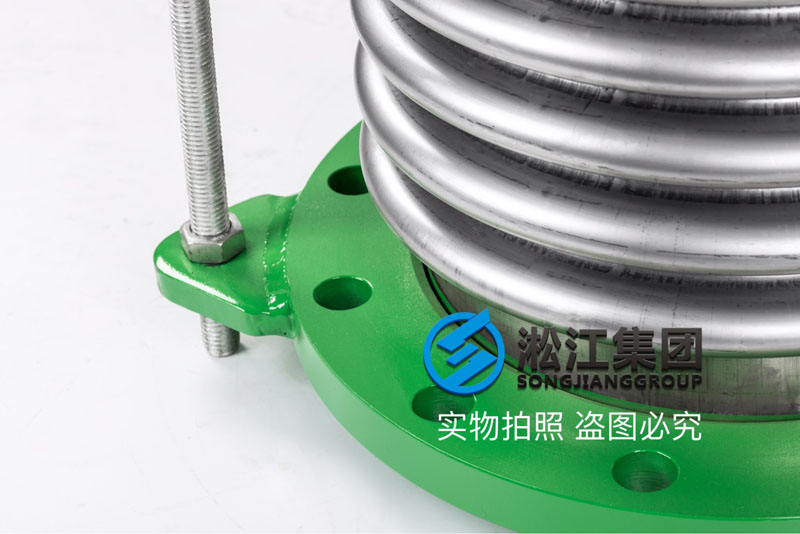

限位耳板：耳板全部采用加大加厚尺寸生產，每個型號都可以與同行業同型號去一對一的對比，這就是所謂的沒有對比就沒有傷害。

限位螺桿：螺桿全部采用8.8級高強度鍍鋅，為了確保產品的綜合強度，不要與市面的4.8級來對比，無意義。

生產標準：淞江集團通過壓力管道生產許可要求，并且嚴格按照壓力管道生產要求進行生產，讓出廠的每一個波紋補償器產品達到100%的合格。

Material description:

Bellows body: in order to prolong the service life, it is all made of stainless steel 304 normal materials, which supports the detection of various spectrometers. The false * compensate 10, and the thickness is all thicker than the industry standard.

Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.

Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.

Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.

Limit screw: all screws are made of grade 8.8 high-strength galvanized. In order to ensure the comprehensive strength of the product, do not compare with grade 4.8 on the market, which is meaningless.

Production standard: Songjiang group has passed the requirements of pressure pipeline production license and produced in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered can reach 100% qualification.

相關鏈接：【重慶天和國際中心】波紋補償器合同
