DN32空調金屬軟連接

DN32空調金屬軟連接
Metal soft connection of air conditioning

上海淞江減震器集團有限公司官方網站為您介紹：DN32空調金屬軟連接信息，淞江集團為中央空調系統暖通風機進出口配套DN32空調金屬軟連接產品，該產品采用不銹鋼304波紋，具有良好的防腐效果和良好的使用壽命，高達10多年。
Shanghai Songjiang absorber group limited official website for your introduction: DN32 air conditioning metal soft connection information, Songjiang group for the central air conditioning system in HVAC machine import and export supporting DN32 air conditioning metal soft connecting products, the products with 304 stainless steel bellows, has good anticorrosion effect and good up to 10 years.

性能介紹：
公稱通徑：DN32mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Deflection angle: 45 degrees

產品介紹：

1.產品名稱：DN32空調金屬軟連接

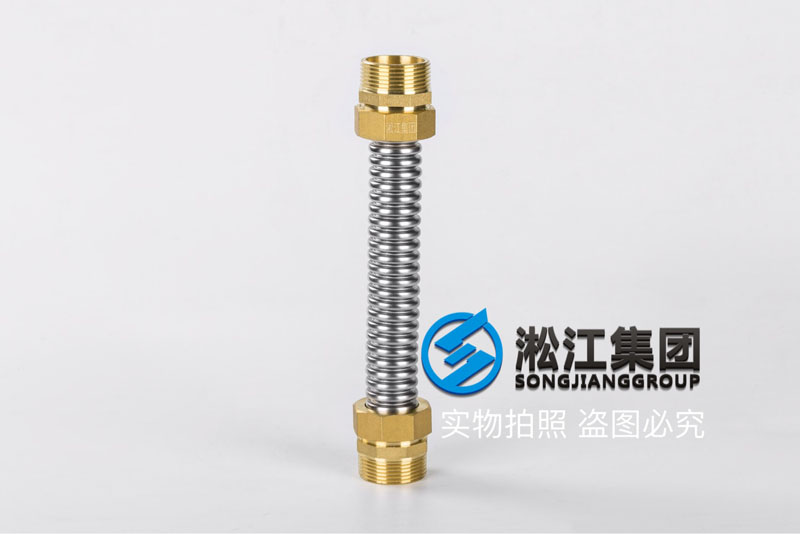

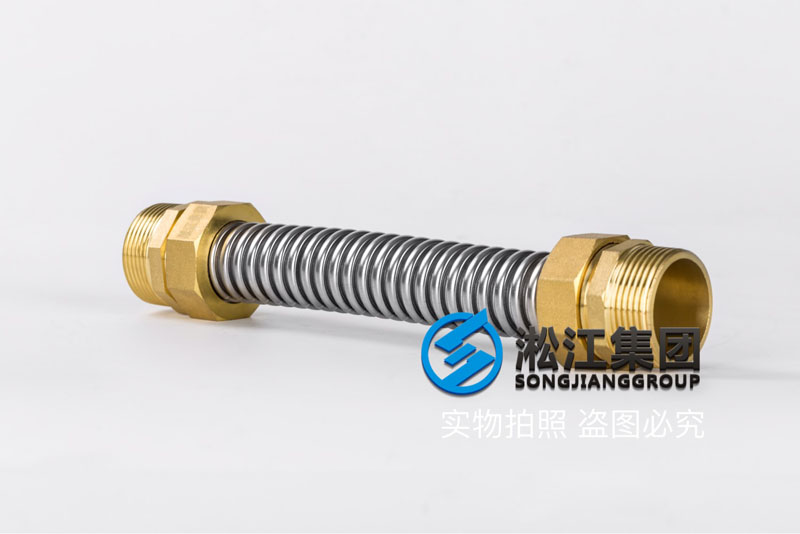

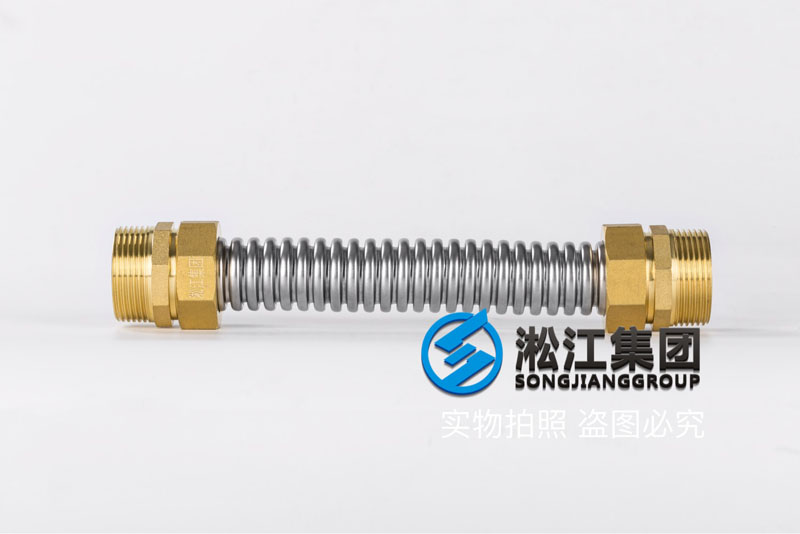

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

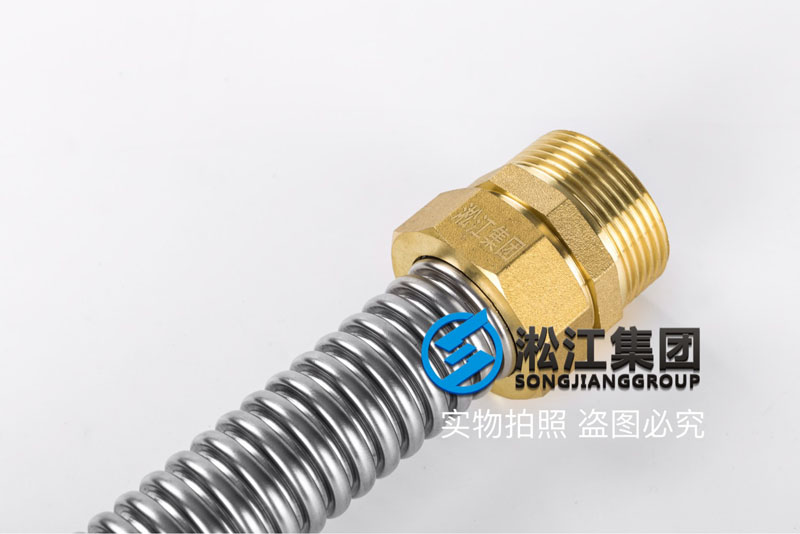

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

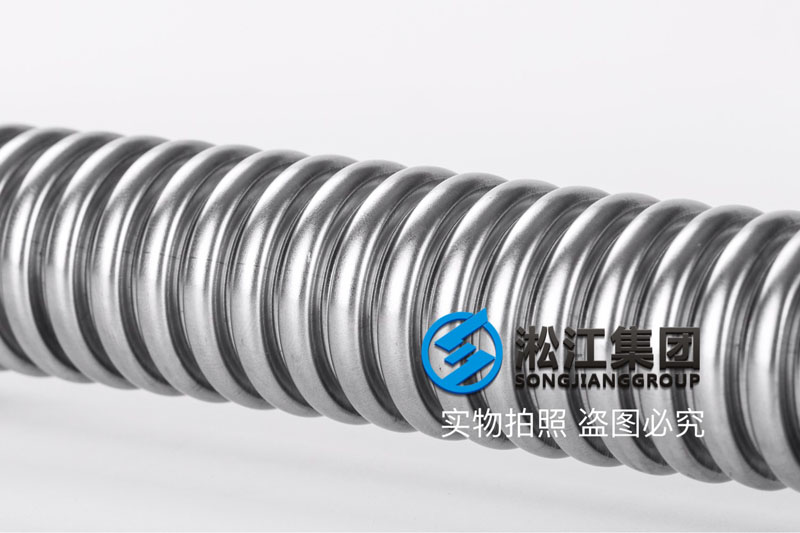

④波紋管：SUS304
Product introduction:

1. Product Name: DN32Metal soft connection of air conditioning

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304以上DN32空調金屬軟連接信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多金屬軟管產品點擊：金屬軟管
The above DN32 air conditioning metal soft connection information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.
