RM120立式水泵橡膠減震器

服務內容：RM120立式水泵橡膠減震器

簡介：RM120立式水泵橡膠減震器 Vertical pump rubber shock absorber 上海淞江減震器集團有限公司官方網站為您介紹：RM120立式水泵橡膠減震器，淞江集團是一家從事工業減震器產品的企業，包括減震器的設計、研發......

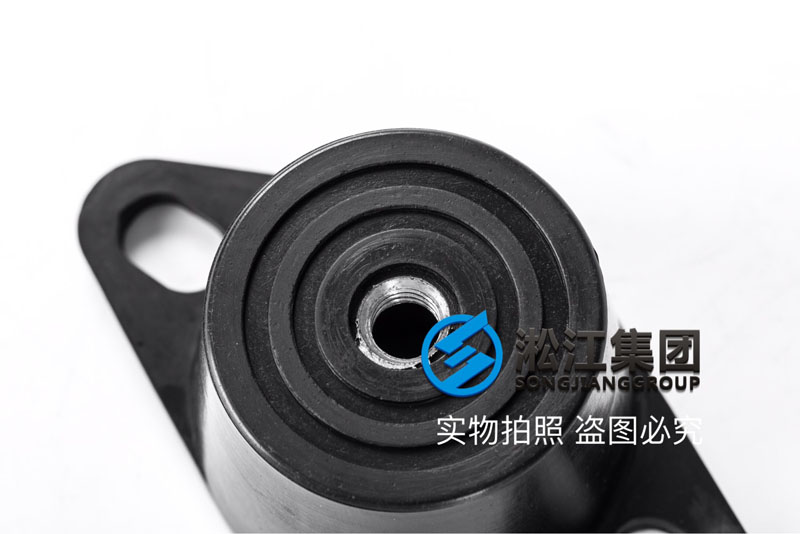

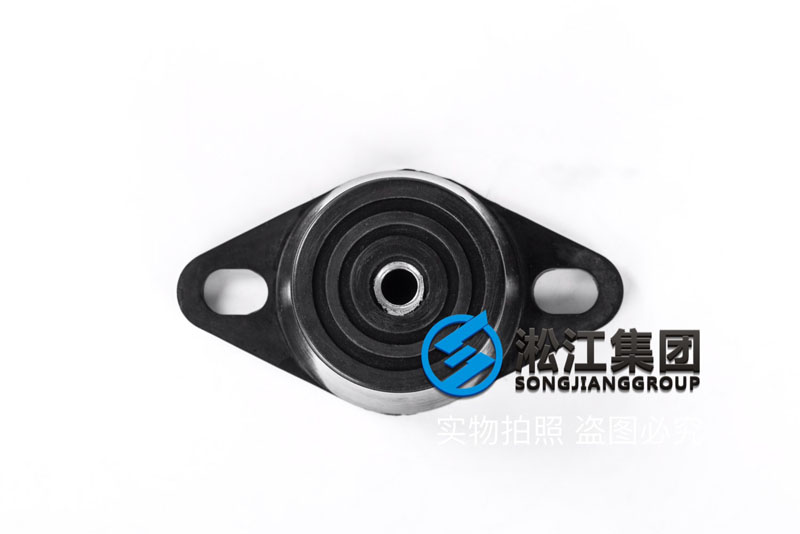

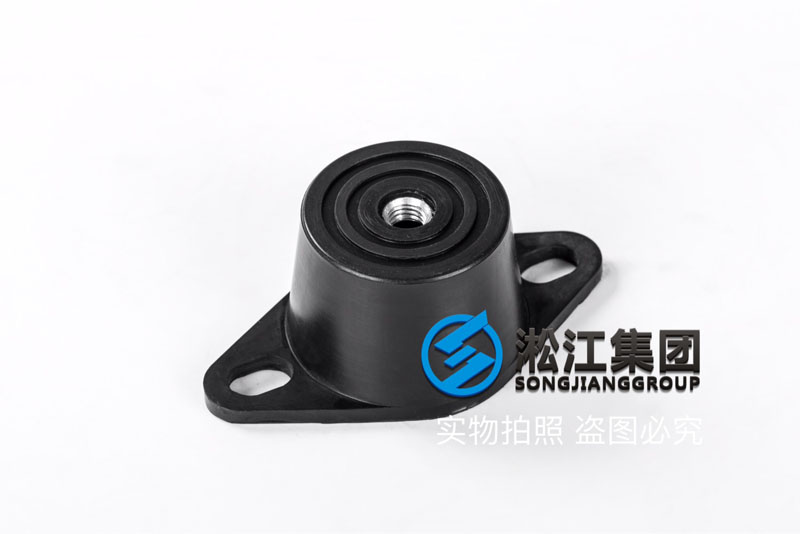

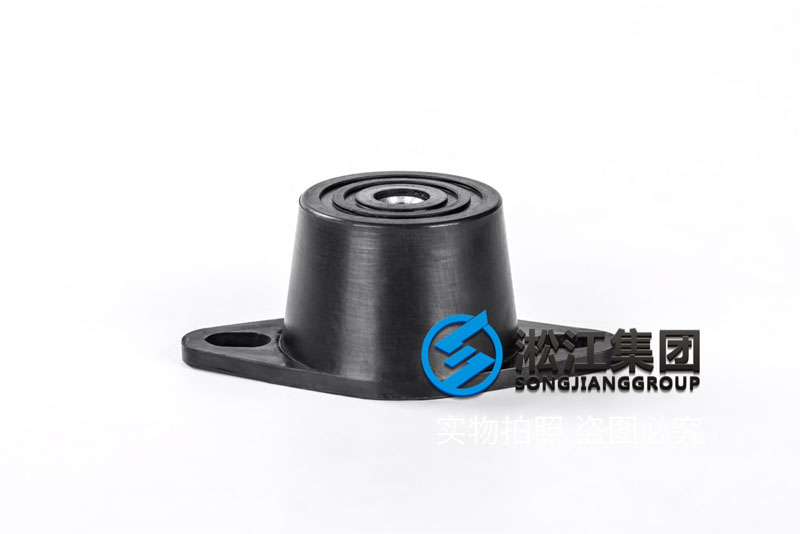

RM120立式水泵橡膠減震器
Vertical pump rubber shock absorber

上海淞江減震器集團有限公司官方網站為您介紹：RM120立式水泵橡膠減震器，淞江集團是一家從事工業減震器產品的企業，包括減震器的設計、研發、生產、銷售一體化集團性企業。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you: RM120 vertical water pump rubber shock absorber, Songjiang group is an enterprise specializing in industrial shock absorber products, including the design, research and development, production and sales integration group business of shock absorber.

RM型立式水泵橡膠減震器，既有橡膠剪切的承壓性能，又有過負荷保護的壓縮性能，整體成型，上端有螺紋安裝孔，下端有防滑底板，所有金屬由阻尼橡膠覆蓋。這種橡膠減振器適用于減少噪聲和高頻率振動場所，多用于轉速大于480轉/分的風機、立式臥式水泵、冷水機組等減振降噪。

The RM type rubber shock absorber has both the bearing performance of the rubber shear and the compression performance of overload protection. It has overall forming, the upper end has threaded installation holes, and the bottom part has anti-skid baseplate, all metals are covered by damping rubber. The rubber shock absorber is suitable for reducing noise and high frequency vibration places. It is mainly used for vibration and noise reduction of fans, vertical horizontal pumps and chillers, whose speed is greater than 480 rpm.

RM型立式水泵橡膠減震器也可以使用在小型發電機、小型空壓機、小型電機，減震效果好，使用成本低，是眾多設備廠家配套首選。

The RM rubber shock absorber can also be used in small generators, small air compressors and small motors, with good damping effect and low use cost. It is the first choice for many equipment manufacturers.

淞江集團生產的RM型立式水泵橡膠減震器產品是由優質的天然橡膠NR生產，彈性好，為工業廠房減震做出一定的貢獻。

The RM rubber cushion product produced by Songjiang group is produced by high quality natural rubber NR and has good elasticity and makes a certain contribution to the shock absorption of industrial plant.

以上RM120立式水泵橡膠減震器信息來源于上海淞江減震器集團有限公司官方網站減震器欄目，以下是RM型橡膠減震器參數表：
The rubber damper information of the above RM120 distribution cabinet is from the shock absorber section of the official website of Shanghai Songjiang shock absorber Group Co., Ltd., the following is the RM rubber damper parameter table.

型號 Model	最佳載荷Optimal load kg	外形尺寸 Shape size?(mm)
型號 Model	最佳載荷Optimal load kg	C	L	H	W	Φ
RM-60	60	76	105	43	10	9
RM-90	90	76	105	43	10	9
RM-120	120	76	105	43	10	9
RM-240	240	105	140	73	12	14
RM-360	360	105	140	73	12	14
RM-480	480	105	140	73	12	14

相關鏈接：彈簧減震器
